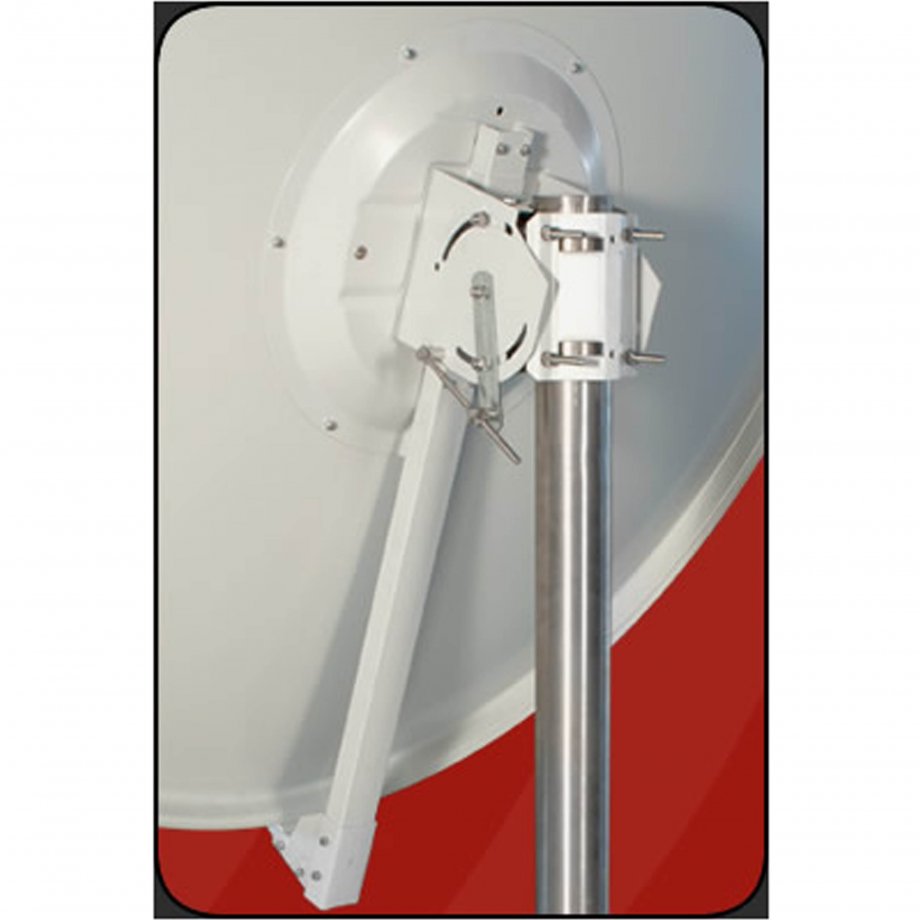

OP 150 S |
||||
Technical Specifications | OP 150 S | |||
![]() |
||||
Frequency range (GHz) | 10.00-13.00 | |||
![]() |
||||
Outside dimension(cm) | 155.0 x 166.0 | |||
![]() |
||||
Reflecting dimension (cm) | 150.0 x 161.0 | |||
![]() |
||||
Illumination efficiency(¹) (%) | 70 | |||
![]() |
||||
Gain(¹) @ 10.70 GHz (dB) | 43.00 | |||
![]() |
||||
Gain(¹) @ 11.70 GHz (dB) | 43.70 | |||
![]() |
||||
Gain(¹) @ 12.75 GHz (dB) | 44.50 | |||
![]() |
||||
Cross polarization(¹);(²) on axis (dBc) |
-28 | |||
![]() |
||||
First side lobe level(¹);(²) (dBc) | -25 | |||
![]() |
||||
Noise temp.(¹) @ 12GHz, 30° elevation (K) | 31 | |||
![]() |
||||
F/D radio | 0.66 | |||
![]() |
||||
-3 dB Beam width(¹) @ 11.7GHz | 1.07° | |||
![]() |
||||
Offset pointing angle | 21.3° | |||
![]() |
||||
Feed illumination angle | 70° | |||
![]() |
||||
Feeder clamp (mm) | 40 | |||
![]() |
||||
Elevation angle | 20° - 90° | |||
![]() |
||||
Mast clamp (mm) | 55 - 100 | |||
![]() |
||||
Reflector thickness (mm) | 2.0 | |||
![]() |
||||
Wind-load @ 120 km/h (kg) | 250 |
|||
![]() |
||||
Antenna net weight (kg)(³) | 23.8 | |||
![]() |
||||
Working temperature | -30°/+70° | |||
![]() |
||||
Humidity | 0-100% |
